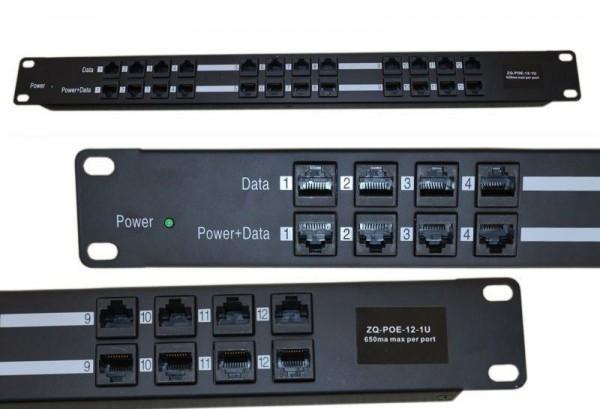

AirBridge 12 Port Gigabit POE Splitter

Adaptör hariçtir adaptörü isteğe ve ihtiyaca göre(voltaj ve akım) ayrıca alınmalıdır

12port Gigabit poe injector

Specifications

12port Gigabit poe injector, suppport 10/100/1000M Gigabit Ethernet,Flexible power(DC 24V TO 57V)
Each Port Current Protection


FEATURES:

USE 10/100/1000M Gigabit Ethernet
Flexible power(DC 24V TO 57V)
Each Port Current Protection (650mA+/-15%)
Built-in LED Indicator
For 19’’ Rack

OVERVIEW:

The 12 port gigabit PoE panel is used 10/100/1000M Ethernet,The upper
Rj45 sockets is fo “LAN/Switch/PC ” 1/2&3/6&4/5&7/8 are transmitting data.
The under RJ45(power+data) socket is to deliver data and power:1/2&3/6&4/5
&7/8 transmitting data,1/2(-)&3/6(+)for power.passive POE iscomposed of 12
set of Rj45 sockets and two 60V DC power jack.Input power requests120W or
more AC TO Dcpower converter.The input dc hole diameter is 2.5mm and the
other end OD id 5.5mm.
Each socket provides protection against short overflow (current protection
650mA+15%-15%). The sum total output power must be lower than the MAX
input power of AC-DCpower converter. If not, it is necessary to consider taking
higher AC-DC power converter. Therecommended formula for AC-DC power
converter is 10W per RJ45 set (1 set = 2 x RJ45sockets). For example, 12 x
10W = 120W for 12 port Passive PoE panel .
The configuration size of panel is 1U (height), 19” (width) and 52mm
(thickness), as isavailable to answer market demand and convenient to be
installed directly.
:
Port current 0-20ma
Port current 0-400ma
Port current >400ma
off off off
green green green
rad rad rad
LED Indicator
1-4 Rj45 socket LED1 5-8 Rj45 socket LED2 9-12 Rj45 socket LED3

SPECIFICATIONS
Input 100-240V AC 50/60Hz
Output 48V 120W (Min)
Data 1/2&3/6&4/5&7/8
Power 3/6+ & 1/2- (48V)
Data In Connects PC/HUB/Switch
Weight 12 Port 1.2Kg
Dimensions 482.6mm×44.3mm×52mm
Case of material metal work material
Ethernet Cable TIA/EIA 568 Cat. 5
Data rate 10/100/1000Mbps
Connector RJ-45
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C~+70°C
Operating Humidity 10%~80%RH
Storage Humidity 5%~90%RH
Certification CE
