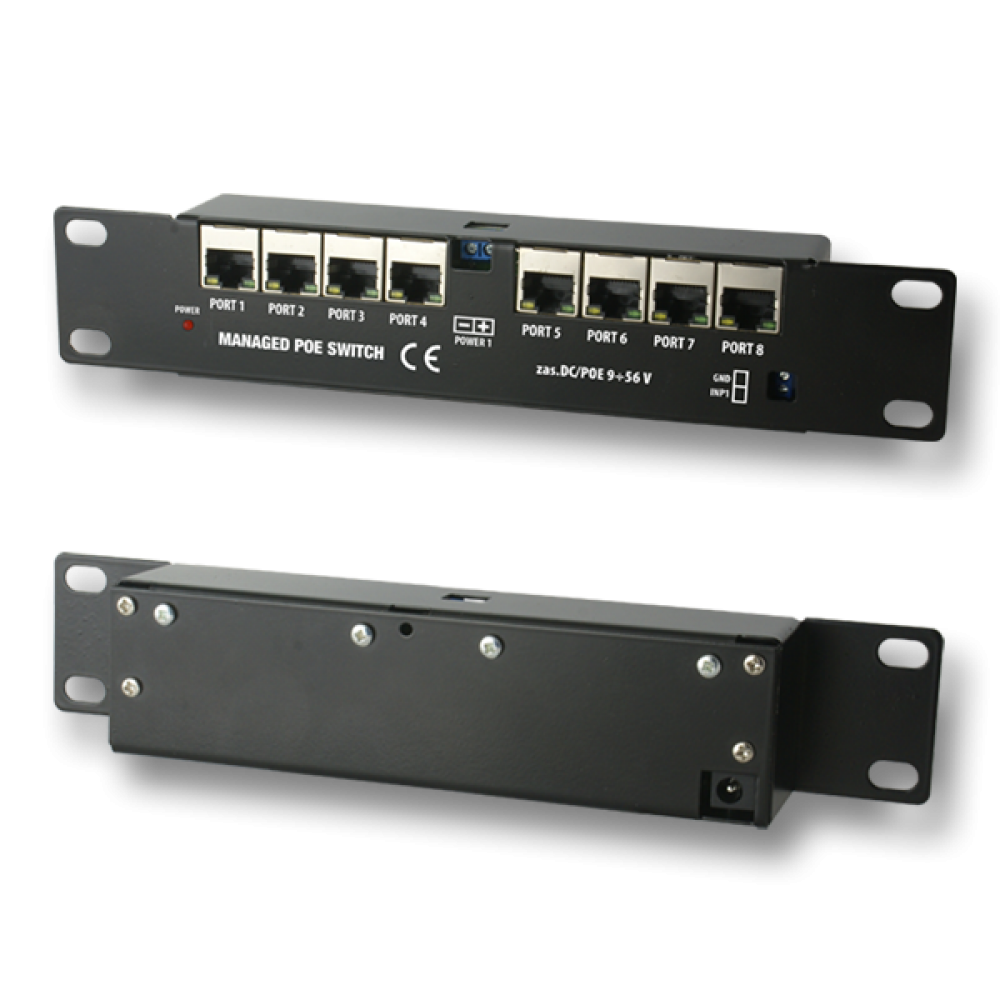

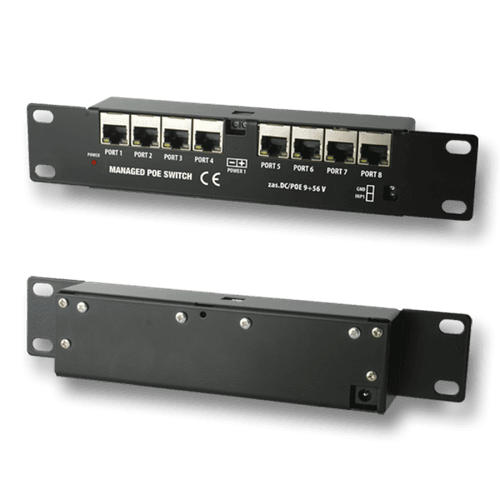

Lan-Röle Kontrol 8 Port Switch

Name: Lan-Röle Kontrol 8 Port Switch
Brand: AirBridge
SKU: WFRLSW8P
Price: 3868.80 TRY
Availability: OutOfStock

power supply voltage: 6-56V (for suplied power more than 5W suggested min 12V, for longer cables as 20M suggested 24V or more). current consumption at one POE port, max 2A (electronic recommended max 1,5 A). total power on all ports should not exceed 8A. power consumption of the

Ürün özellikleri

28.296 ziyaret

SKU:

WFRLSW8P

₺3.868,80KDV Dahil

KDV Hariç ₺3.224,00USD KDV Dahil $78.00USD KDV Hariç $65.00

Stok:

Stokta yok

power supply voltage: 6-56V (for suplied power more than 5W suggested min 12V, for longer cables as 20M suggested 24V or more).
current consumption at one POE port, max 2A (electronic recommended max 1,5 A).
total power on all ports should not exceed 8A.
power consumption of the switch: one active link about 0.6W
protection against reverse polarity: YES
work temperature: -20 do +85 st. C
housing sizes (without holders) 168x42x34mm , with holders 234x42x34mm
housing high - 1U
management by WWW or SNMP v2.
firmware upgrade by special application
read data in real time without refresh the page
ON/OFF power to eight passive POE ports directly from a web page or SNMP
Watchdog IP on all ports
monitoring of additional equipment such as power buffer
environment temperature
voltage measurement: resolution, accuracy - + 0.1 V
current measurement: 10mA resolution, accuracy +-20mA
date and time from NTP or manual
email alert when Watchdog activation
automatic sending of SNMP TRAP (VCC, temperature, INPD)
supported protocols: HTTP, SNMP, SMTP, NTP, ICMP, DNS, DHCP.
8 ports 100/10Mbit
cutting off power on the PoE port when 2A current is exceeded.
http://tinycontrol.ats.pl/media/katalog/kontrolery/poe-switch/files/instrukcja-switch-1-0-en.pdf
